Leírás

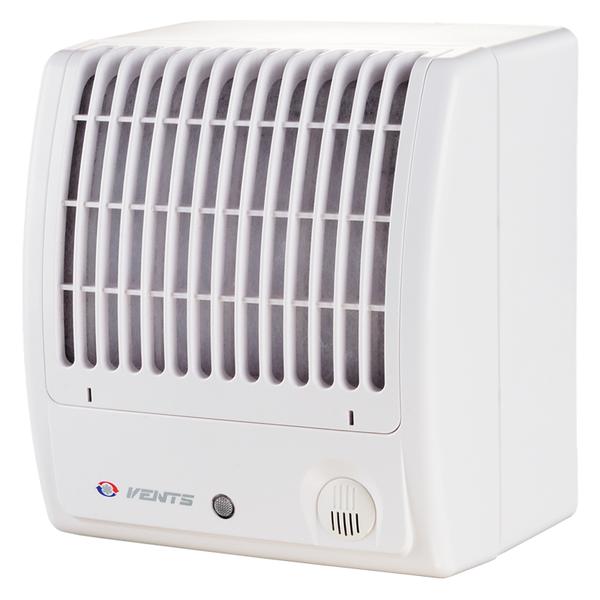

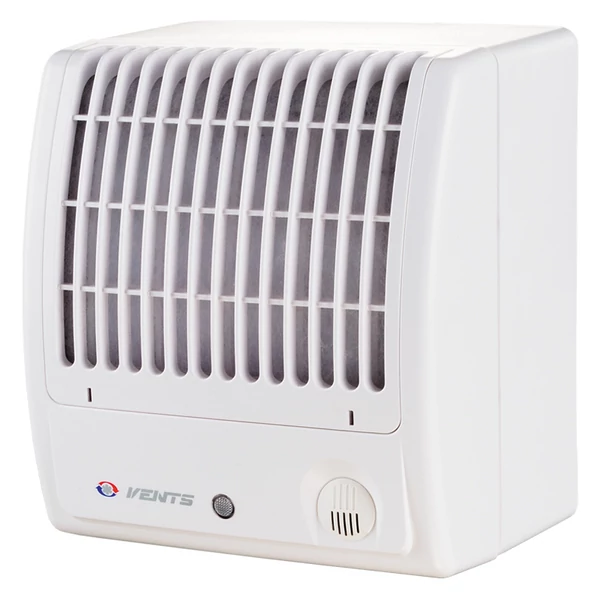

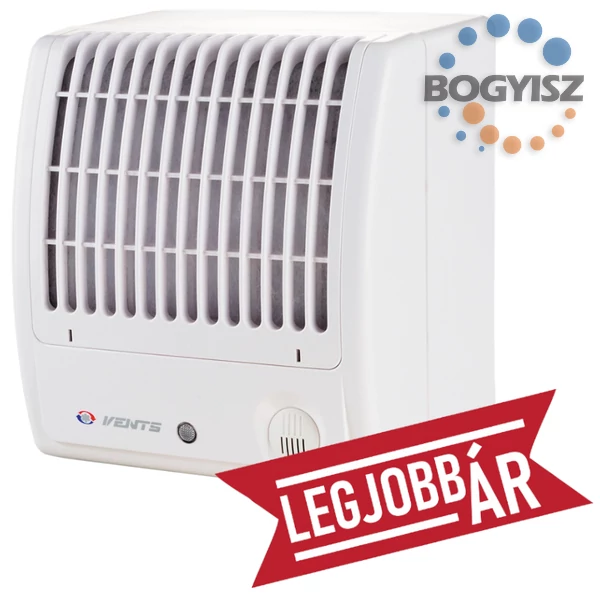

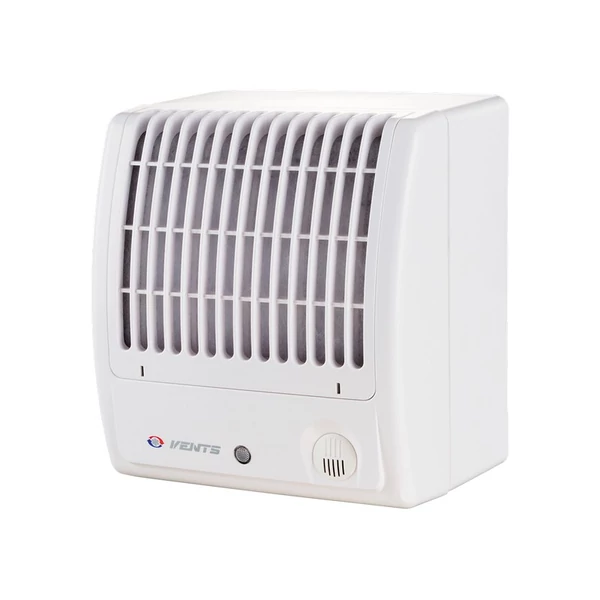

Három fokozató centrifugális ventilátor
| Parameter | Vents 100 CF3 speed 1 |
Vents 100 CF3 speed 2 |
Vents 100 CF3 speed 3 |
Measurement unit |
|---|---|---|---|---|
| Duct diameter | 100 | 100 | 100 | mm |
| Design | centrifugal | centrifugal | centrifugal | - |
| Voltage | 220-240 | 220-240 | 220-240 | V |
| Frequency | 50/60 | 50/60 | 50/60 | Hz |
| Power consumption | 13 | 17 | 27 | W |
| Air capacity | 48 | 65 | 90 | m³/h |
| Current | 0.08 | 0.11 | 0.16 | A |
| RPM | 825 | 1010 | 1593 | min-1 |
| Sound pressure level at 3 m | 25 | 31 | 34 | dBА |
| Weight | 1.3 | 1.3 | 1.3 | kg |
| Spigot size | 100 | 100 | 100 | mm |
| Engine Type | 220-240V / 50-60Hz | 220-240V / 50-60Hz | 220-240V / 50-60Hz | - |
| IP Code | IP 24 | IP 24 | IP 24 | - |
| Type | exhaust | exhaust | exhaust | - |
| Mounting | wall mounting, ceiling mounting | wall mounting, ceiling mounting | wall mounting, ceiling mounting | - |
