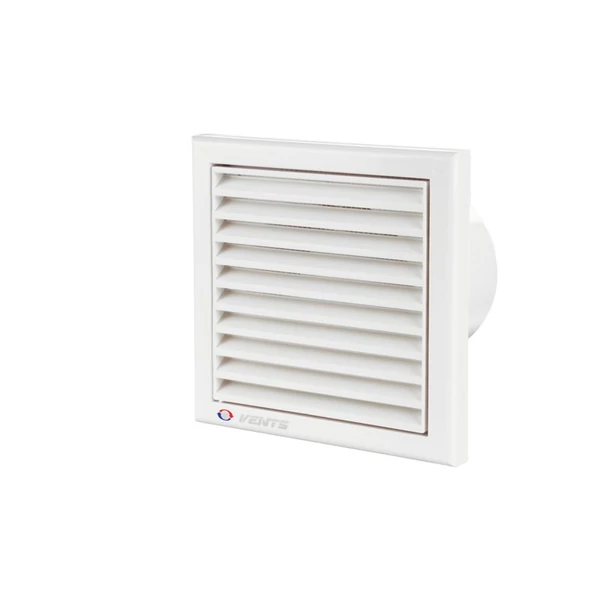

VENTS 125 K FALI AXIÁLIS VENTILÁTOR
|
Parameter |
Value |
Unit |
|
|---|---|---|---|
|
Voltage |
220-240 |
V |
|
|
Frequency |
50/60 |
Hz |
|
|
Power |
16 |
W |
|
|
Air capacity |
180 106,02 50,04 0,05004 3006 |
m³/h CFM l/s m³/s l/m |
|
|
Current |
0.1 |
A |
|
|
RPM |
2400 |
min -1 |
|
|
Sound pressure level at 3 m |
35 |
[dBA] |
|
|
Weight |
0.65 |
kg |
|
|
Protection rating |
IP 34 |
class |
|
|
Spigot size |
125 |
mm |
|
|
Engine Type |
220-240V / 50-60Hz |
||
|
Sizes |
∅D |
B |
H |
L |
L1 |
|---|---|---|---|---|---|
|
mm |
125 |
187 |
142 |
112 |
15 |
