Leírás
|
Parameter |
Value |
Unit |
|
|---|---|---|---|
|
Speed |
min / max |
||
|
Phase |
1 |
˜ |
|
|
Voltage |
230 |
V |
|
|
Frequency |
50 / 60 |
Hz |
|
|
Current |
0.12 / 0.16 |
A |
|
|
Power consumption |
28 / 54 |
W |
|
|
Maximum air capacity |
240 / 320 141,36 / 188,48 66,72 / 88,96 0,06672 / 0,08896 4008 / 5344 |
m³/h CFM l/s m³/s l/m |
|
|
RPM |
1850 / 2510 |
min -1 |
|
|
Noise level at 3 m |
31 / 42 |
[dBA] |
|
|
Maximum transported air temperature |
60 |
оC |
|
|
Protection rating |
IP X4 |
class |
|
|
Weight |
3.14 |
kg |
|
|
Spigot size |
125 |
mm |
|
|
High-powered motor |
yes |
||
|
SEC Class |
C |
||

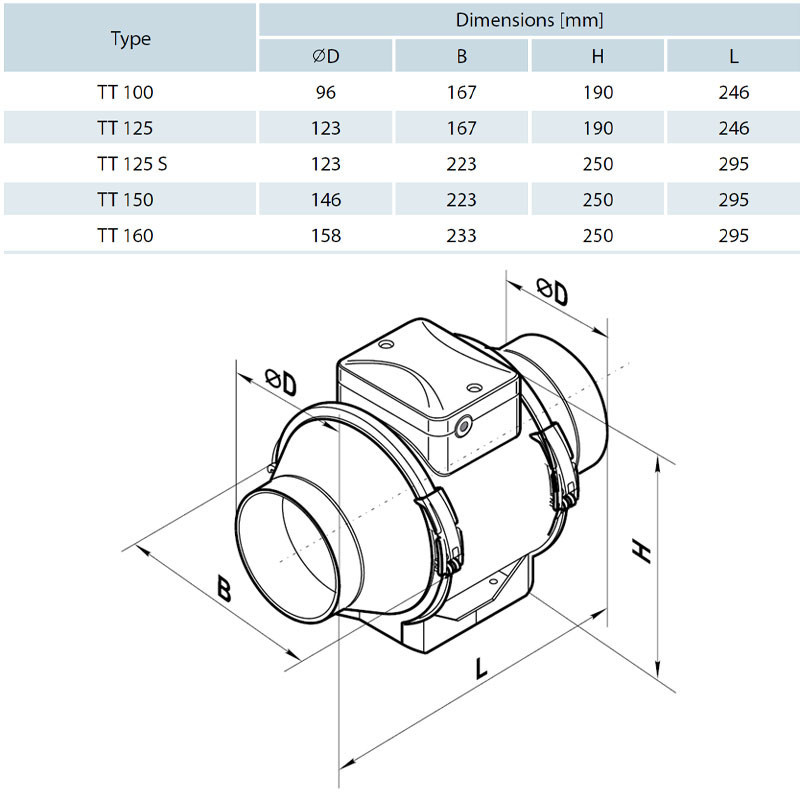

| Parameter | Value | Measurement unit |
|---|---|---|
| ∅D | 123 | mm |
| ØD1 | 140 | mm |
| B | 167 | mm |
| H | 190 | mm |
| L | 246 | mm |
