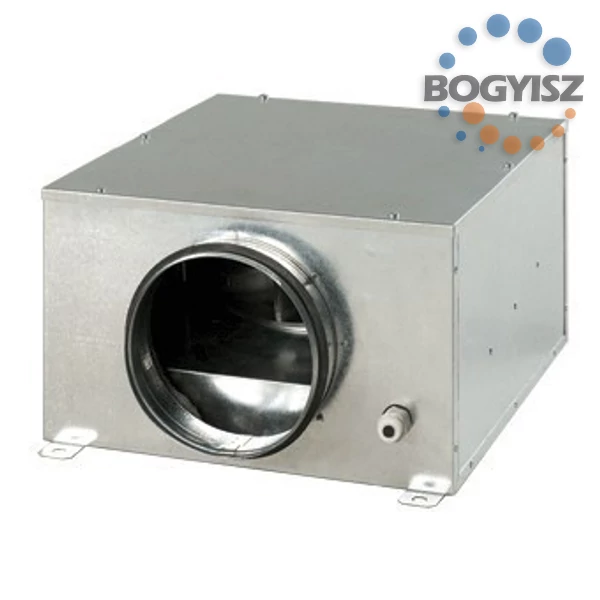

VENTS KSB 125 EC IPARI HANGSZIGETELT VENTILÁTOROK
| Parameter | KSB 125 EC | Measurement unit |
|---|---|---|
| Duct diameter | 125 | mm |
| Sound- and heat-insulated casing | yes | - |
| Design | centrifugal | - |
| Current | 0.75 | A |
| Phase | 1 | ˜ |
| Voltage | 230 | V |
| Frequency | 50/60 | Hz |
| Sound pressure level at 3 m distance | 34 | dBА |
| Air capacity | 375 | m³/h |
| Power consumption | 92.6 | W |
| EC motor | yes | - |
| RPM | 3200 | min-1 |
| Max. transported air temperature | -25 +60 | °С |
| Protection rating | IP X4 | - |
| Casing material | galvanized steel | - |
| SEC Class | C | - |
| Form-ducts | for round air ducts | - |
| Mounting | Inline | - |
| Parameter | Value | Measurement unit |
|---|---|---|
| ∅D | 124 | mm |
| B | 355 | mm |
| B1 | 447 | mm |
| B2 | 380 | mm |
| H | 200 | mm |
| L | 325 | mm |
| L1 | 375 | mm |
| L2 | 280 | mm |
