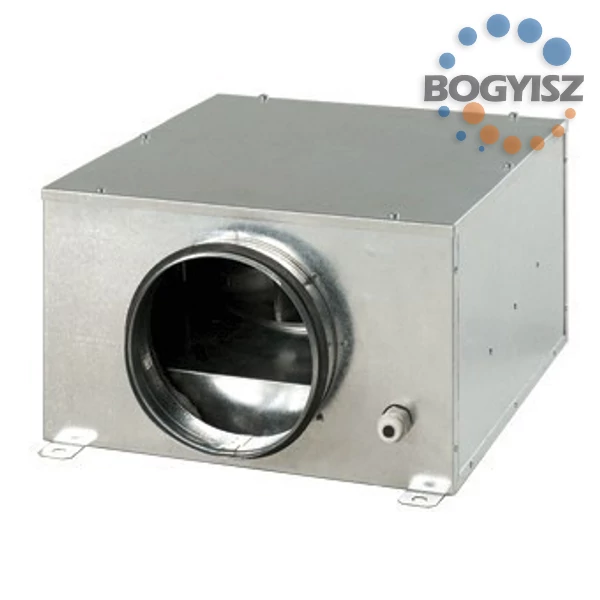

VENTS KSB 315 EC IPARI HANGSZIGETELT VENTILÁTOR
Parameter | VENTS KSB 315 EC | Measurement unit |
---|---|---|
Sound- and heat-insulated casing | yes | - |
Duct diameter | 315 | mm |
Design | centrifugal | - |
Phase | 1 | ˜ |
Current | 1.35 | A |
Voltage | 230 | V |
Frequency | 50/60 | Hz |
Sound pressure level at 3 m distance | 42 | dBА |
Air capacity | 1260 | m³/h |
Power consumption | 164.3 | W |
EC motor | yes | - |
RPM | 2620 | min-1 |
Max. transported air temperature | -25 +60 | °С |
Protection rating | IP X4 | - |
Casing material | galvanized steel | - |
SEC Class | - | - |
Form-ducts | for round air ducts | - |
Type | supply and exhaust | - |
Mounting | Inline | - |
Parameter | Value | Measurement unit |
---|---|---|
∅D | 314 | mm |
B | 545 | mm |
B1 | 650 | mm |
B2 | 566 | mm |
H | 405 | mm |
L | 435 | mm |
L1 | 560 | mm |
L2 | 438 | mm |
