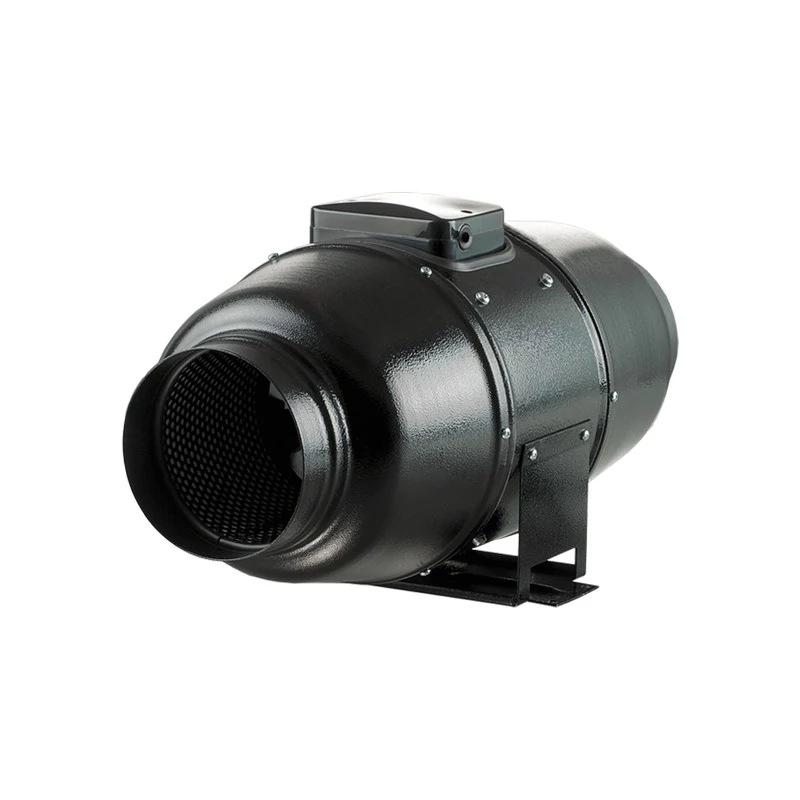

VENTS TT-SILENTA-M 250 HANGSZIGETELT CSATORNAVENTILÁTOR
| Parameter | TT Silent-M 250 min |
TT Silent-M 250 max |
Measurement unit |
|---|---|---|---|
| Duct diameter | 250 | 250 | mm |
| Sound- and heat-insulated casing | yes | yes | - |
| Speed | min | max | - |
| Phase | 1 | 1 | ˜ |
| Voltage | 230 | 230 | V |
| Frequency | 50/60 | 50/60 | Hz |
| Fan power | 125 | 177 | W |
| Current | 0.54 | 0.79 | A |
| Maximum air capacity | 1110 | 1400 | m³/h |
| RPM | 1955 | 2440 | min-1 |
| Max. transported air temperature | 60 | 60 | °С |
| Sound pressure level at 3 m | 34 | 38 | dBА |
| Protection rating | IP X4 | IP X4 | - |
| Casing material | polymer coated steel | polymer coated steel | - |
| Mass | 15 | 15 | kg |
| SEC Class | - | - | - |
| Form-ducts | for round air ducts | for round air ducts | - |
| Type | supply and exhaust | supply and exhaust | - |
| Mounting | floor mounting, wall mounting, ceiling mounting, Inline | floor mounting, wall mounting, ceiling mounting, Inline | - |
| Parameter | Value | Measurement unit |
|---|---|---|
| ∅D | 248 | mm |
| B | 358 | mm |
| B1 | 445 | mm |
| H | 360 | mm |
| L | 658 | mm |
