Leírás
| Parameter | VUE 350 P3B EC A14 | Measurement unit |
|---|---|---|
| Frequency | 50/60 | Hz |
| Phase | 1 | ˜ |
| Voltage | 230 | V |
| Maximum unit power | 171 | W |
| Maximum unit current | 1.3 | A |
| Sound pressure level at 3 m distance | 46 | dBА |

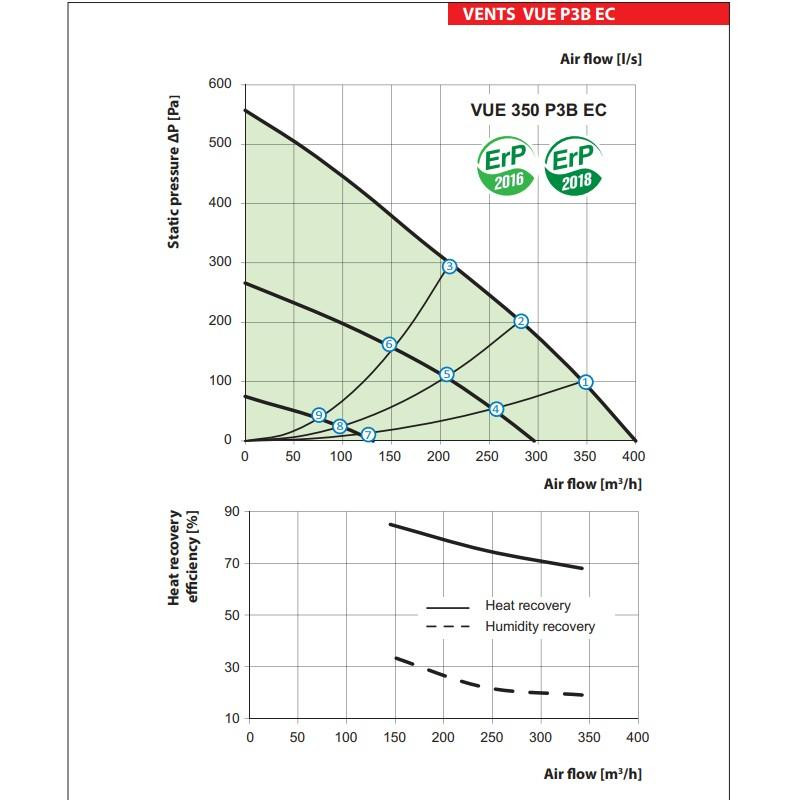

| Air capacity | 430 | m³/h |
| RPM | 3200 | min-1 |
| Humidity recovery efficiency | 19...34 | % |
| Heat recovery efficiency | 68...85 | % |
| Casing material | painted steel | - |
| Insulation | 5 mm, 10 mm polyurethane foam | - |
| Filter: extract | G4 | - |
| Filter: supply | G4 и F8 (PM2.5 87 %) | - |

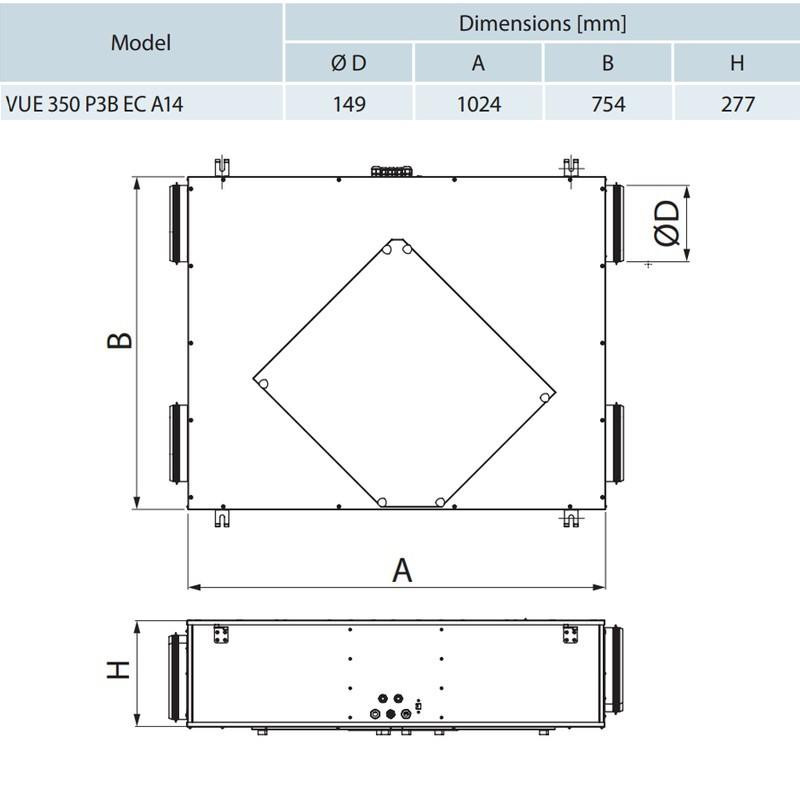

| Connected air duct diameter | 150 | mm |
| Mass | 42 | kg |
| Heat exchanger type | cross-flow | - |
| Heat exchanger material | polymerized cellulose | - |
| SEC Class | A | - |
Paraméterek
| Elhelyezése | horizontális |
